4K@30Hz HDMI Extender Over Ethernet - 70 Meter Range for Meeting Rooms and Auditoriums
The MSLFORCE OEM New Design HDMI Extenderdelivers high-quality 4K@30Hz video transmission over long distancesusing Cat 5 UTP6 cable, supporting up to 30 meters at 4K30Hz and 70 meters at 2K60Hz.
Compatible with HDMI sources and USB-C devices featuring DP Alt Mode, this extender ensures reliable connectivity for digital signage, presentations, gaming, and professional AV applications.
Powered by advanced DSC (Display Stream Compression) technology, the extender maintains superior video quality while optimizing bandwidth. Full compatibility with HDCP 2.2, HDR formats, and uncompressed/compressed audio ensures premium viewing and audio performance.

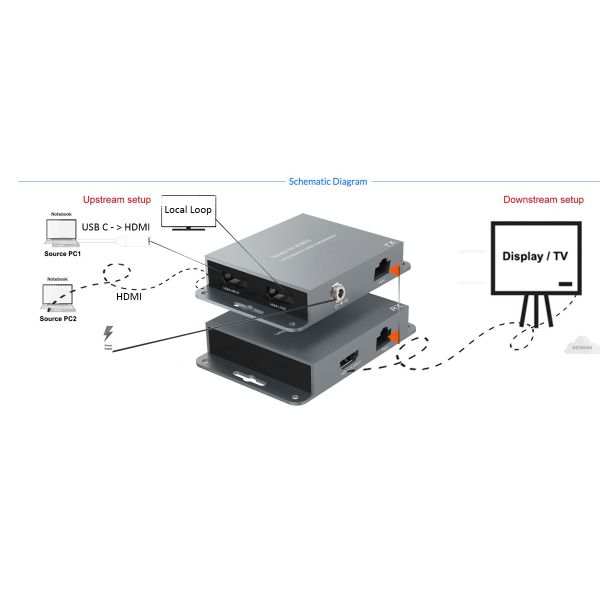

Delivering smooth 4K video output with extended/mirror modes for Mac OS, it supports one local 4K HDMI loop display and one 4K HDMI output on the receiver port simultaneously—ideal for real-time data visualization, streaming, and collaborative presentations.
The MSLFORCE UCH0204Kprovides simple operation for long-range HDMI extension in professional AV environments. We also offer high-resolution solutions including 4K@60Hz HDMI Extender with KVM function over Ethernet, supporting 70m 4:4:4 HDR and HDCP 2.2.
Product Specifications
| Product Name | 4K HDMI Extender over Ethernet |
| Product Model | UCH0204K |
| Material | Aluminum Casting |
| DSC Technology | Display Stream Compression Technology + MCU software developed by MSLFORCE |
| HDMI Resolutions | One Local HDMI Loop: 3840×2160@30Hz, One HDMI Output on Receiver: 3840×2160@30Hz |
| HDMI Version | HDMI 2.0 / HDCP 2.2 |
| ARC/CEC | Supports ARC/CEC |
| Audio Output | Audio output support from PC source or HDMI terminal display/TV/soundbar from receiver |
| Display Modes | Extended Desktop Single & Dual View, Clone |
| Software Support | 7, 8, 10, 11 (32/64-bit), Linux OS (Ubuntu, Red Hat, SUSE), macOS, Android, ChromeOS |
| Operation Temperature | Commercial: 0°C to +70°C, Industrial: -40°C to +85°C |
| Warranty | 3 Years |
Ideal Applications for Long-Distance and Conference Room Use
This solution supports extended reach installations where standard hubs are insufficient. Its flexibility and high durability make it perfect for permanent AV installations, shared docking stations, or hidden connectivity points where aesthetics and accessibility are crucial.
- Dual HDMI Output- Distributes HDMI signal to one local and one remote screen simultaneously
- Long-Distance Signal Transmission- Extends high-quality HDMI video up to 70 meters for large spaces
- 4K Ultra HD & HDR Support- Delivers sharp 4K@30Hz (4:4:4) resolution with High Dynamic Range
Compatible with UCH019ProAV HUB2
The Model No: UCH019ProAV_HUB2features an 8-in-1 USB-C female design, converting the 4K HDMI extender transmission to USB-C host. The UCH0204K includes a mounting bracket for under-desk or on-desk installation, supporting all connections within conference settings for maximum flexibility and performance.
Example Use Cases
Corporate Meeting Rooms
- Connect video bars, PTZ cameras, and peripherals for seamless video conferencing
- Extend hub closer to displays or cameras for optimized cable routing
- Connect dual displays for enhanced meeting productivity and collaboration
- Integrate with USB peripherals like video conferencing cameras or speakerphones
Hybrid Workstations
Supports employees requiring dual monitors for multitasking during remote and in-office work.
Training and Education
Dual displays provide ideal setups for classrooms or training sessions, allowing simultaneous presentation and note-taking.
Home Office Video Conferencing
Perfect for personal setups requiring professional-quality video and networking capabilities.
Interested in customization optionsfor market protection, branding, additional features, or packaging? MSLFORCE can tailor this product to meet specific market demands.
Certifications and Intellectual Property Protection
Comprehensive solution for product intellectual property protection:
Trademark
Appearance Patent
EU Patent
Product CE
ROHS & REACH
FC Certification
